3 inch speakers

MR03F09C 3 inch subwoofer

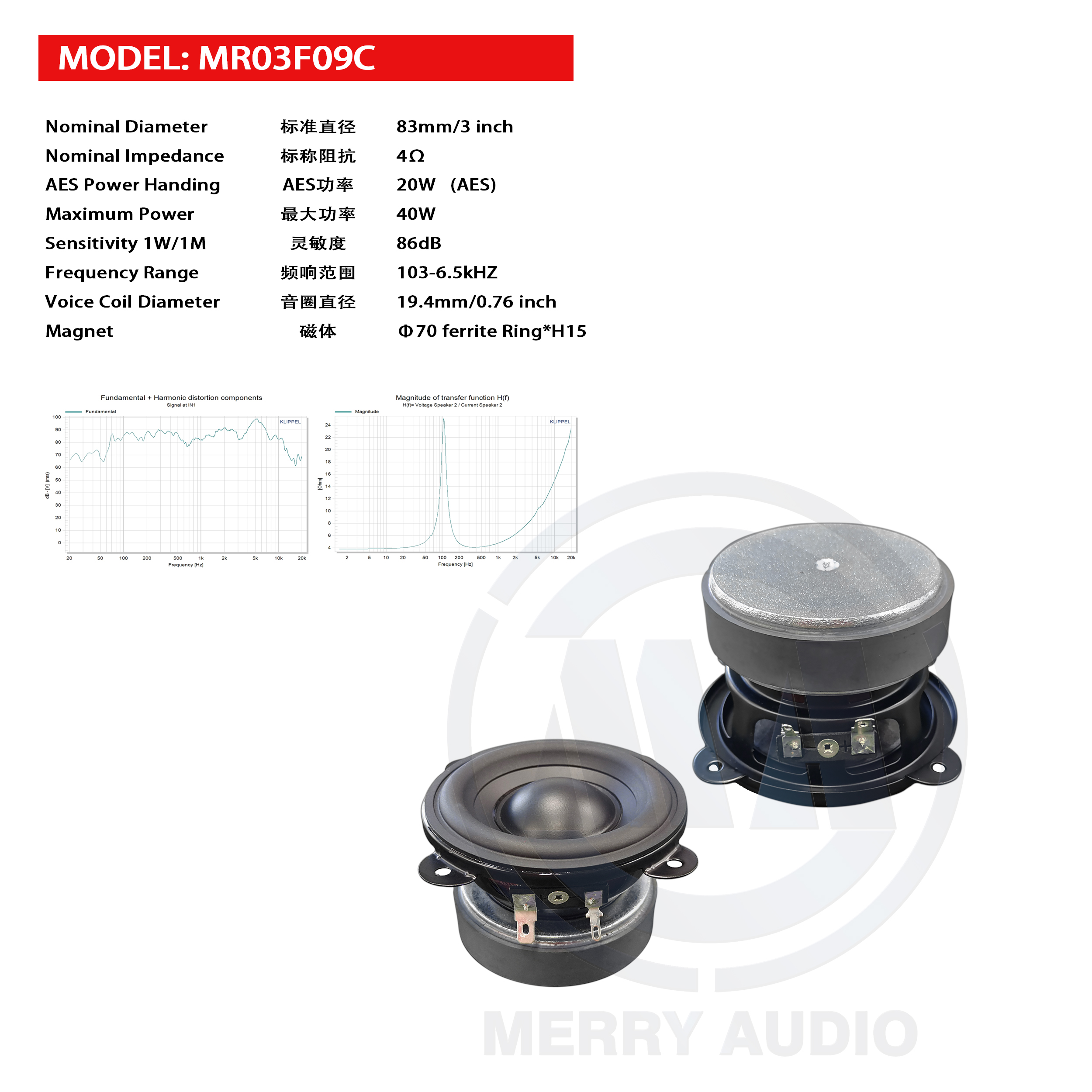

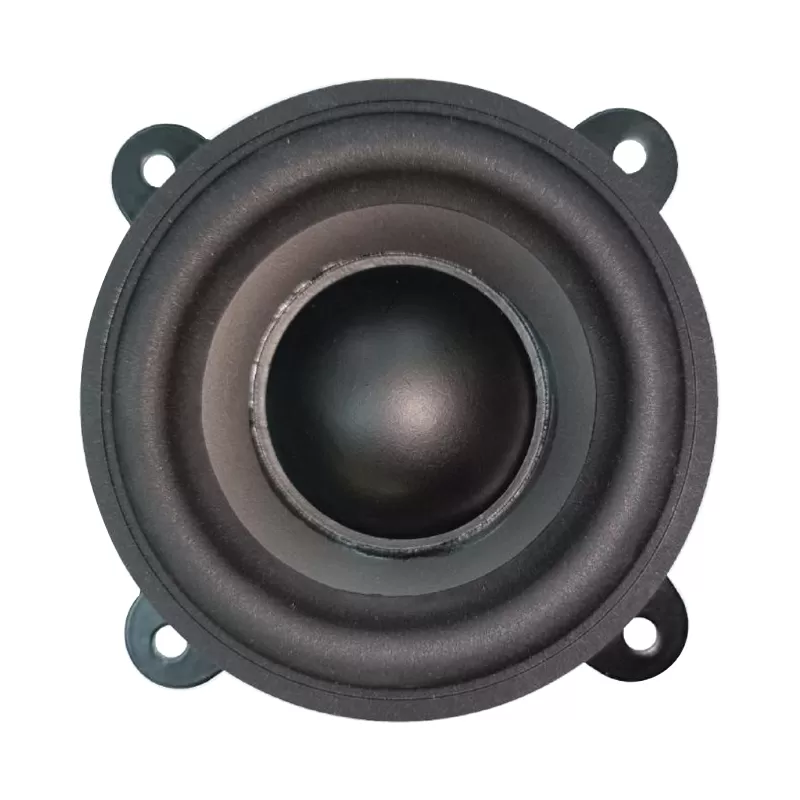

3 inch four-ear iron frame 70mm magnetic 19.4mm voice coil subwoofer speakers,Nominal Diameter 83mm/3inch, Nominal Impedance 4Ω, AES Power Handing 20W, Sensitivity 1W/1M 86dB, Frequency Range 103-6.5kHZ.

Form of Information

Form information:

3-inch subwoofer speaker preferred for home audio and video, HiFi speakers and column speakers, the sound is very good, users like it very much, this product is also our best-selling model.

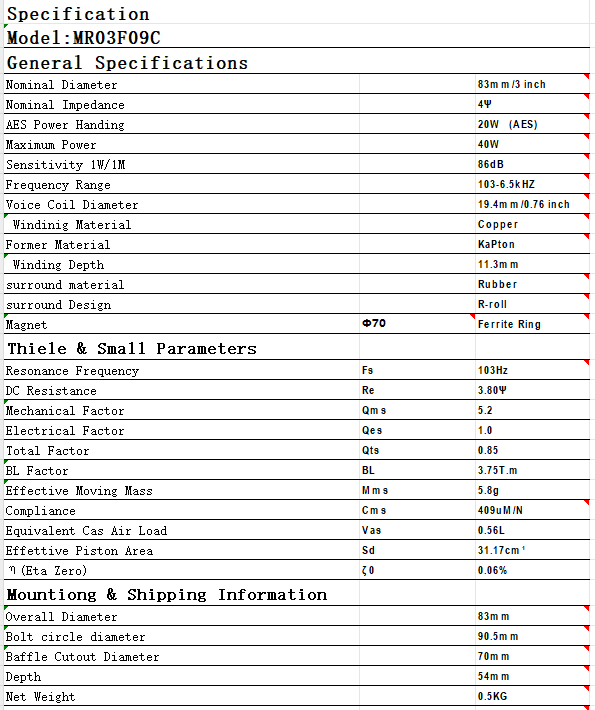

General Specifications




Nominal Diameter


83mm/3inch


Nominal Impedance


4Ω


AES Power Handing


20W   (AES)


Maximum Power


40W


Sensitivity 1W/1M


86dB


Frequency Range


103-6.5kHZ


Voice Coil Diameter


19.4mm/0.76 inch


 Windinig Material


Copper


Former Material


KaPton


 Winding Depth


11.3mm


surround material


Rubber


surround Design


R-roll


Magnet

Φ70

Ferrite Ring


Thiele & Small Parameters




Resonance Frequency

Fs

105Hz


DC Resistance

Re

3.8Ω


Mechanical Factor

Qms

5.2


Electrical Factor

Qes

1


Total Factor

Qts

0.85


BL Factor

BL

3.75T.m


Effective Moving Mass

Mms

5.8g


Compliance

Cms

0.409MM/N


Equivalent Cas Air Load

Vas

0.56L


Effettive Piston Area

Sd

31.17cm²


η(Eta Zero)

η0

0.06%


Mountiong & Shipping Information




Overall Diameter


83mm


Bolt circle diameter


90.5mm


Baffle Cutout Diameter


70mm


Depth


54mm


Net Weight


KG


Shipping Weight


KG

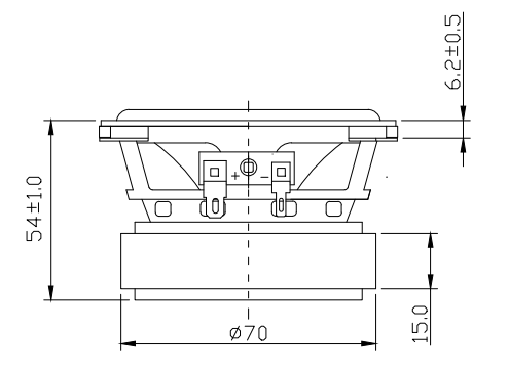

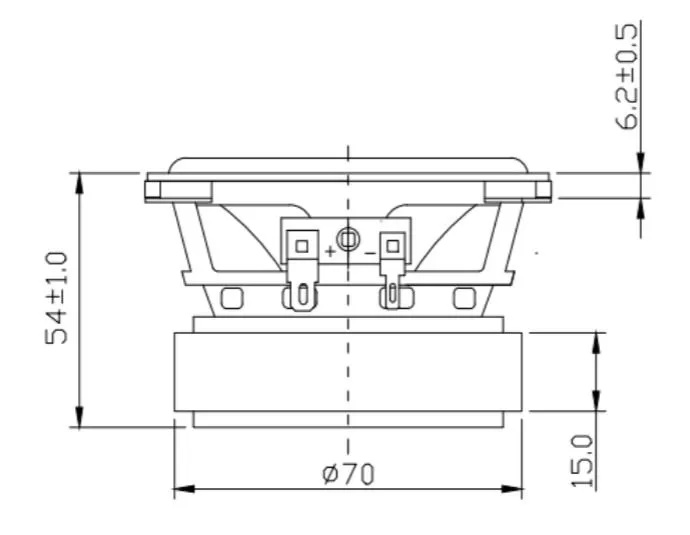

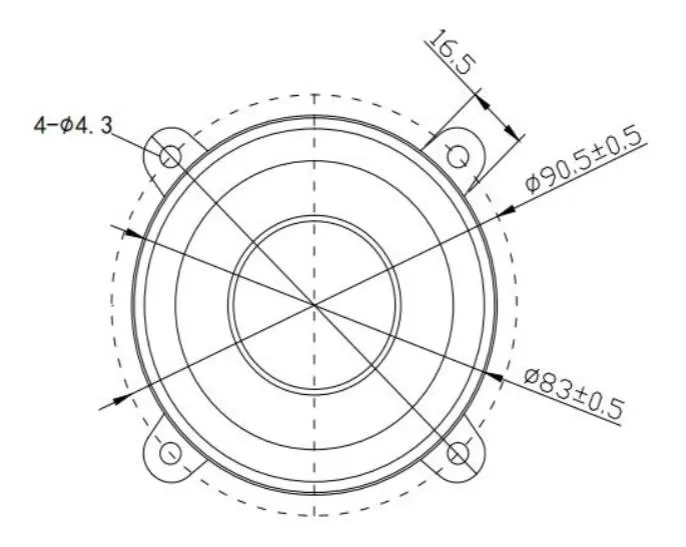

This is the size chart of the MR03F09C, which can better help you design and install the speaker:

 3 inch speaker (4).jpg3 inch speaker (3).jpg

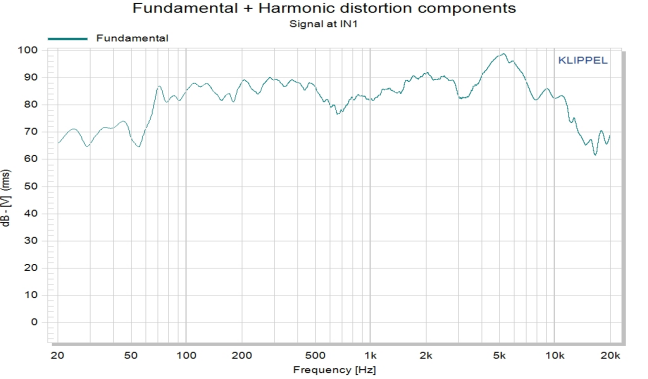

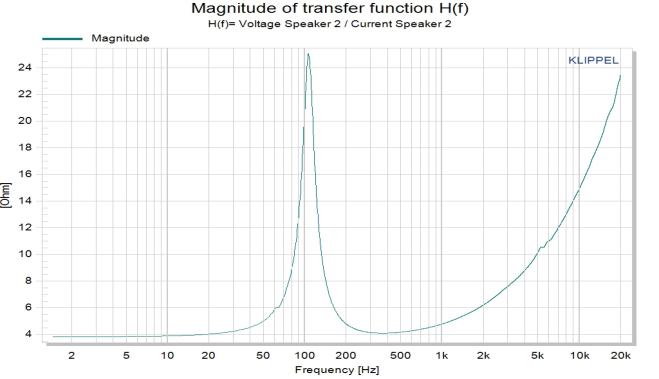

MR03F09C 3-inch subwoofer speaker curve graph.

3 inch speaker (2).jpg

3 inch speaker (1).jpg
