Description：
10 inch 156mm ferrite ring magnets with 51mm voice coil woofer speaker, This unit can be designed as home speakers, monitor speakers, multimedia speakers, line array speakers, AES Power Handing 300W, Sensitivity 1W/1M 94dB, Frequency Range 55-6.5KHz.
Form of Information
Form information：

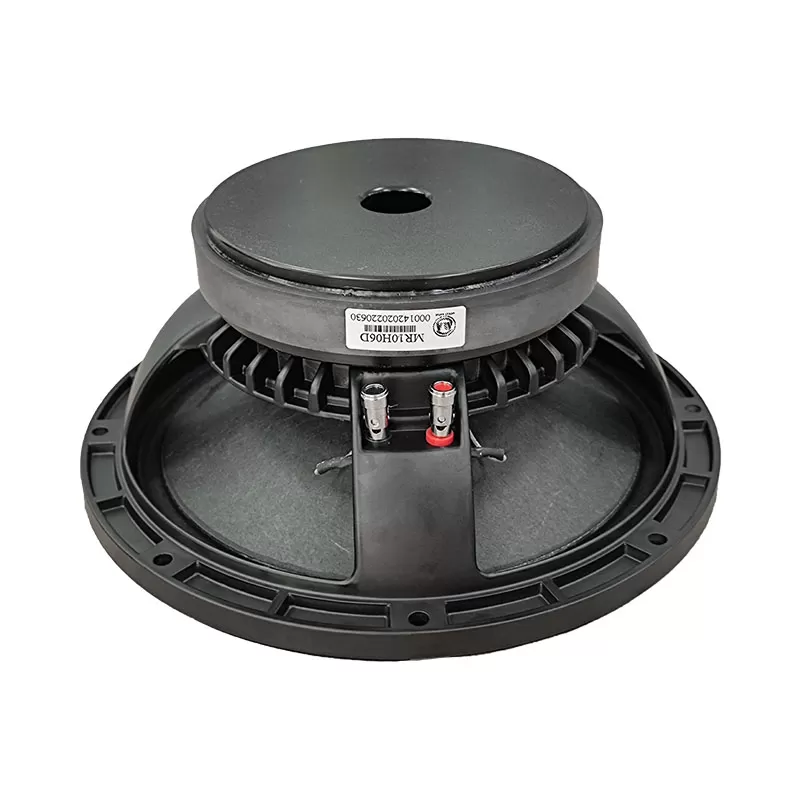

MR10H06D 10 inch woofer speaker. It is characterized by high power, high sensitivity, very smooth frequency response curve, very small distortion, and very ideal TS parameters.
The timbre is very special, and it can have excellent performance in various frequency bands, providing speaker designers with a very good matching speaker unit.
General Specifications | ||
Nominal Diameter | 262mm/10inch | |
Nominal Impedance | 8Ω | |
AES Power Handing | 300W (AES) | |
Maximum Power | 600W | |
Sensitivity 1W/1M | 94dB | |
Frequency Range | 55-6.5kHZ | |
Voice Coil Diameter | 51.5mm/2 inch | |
Windinig Material | Copper | |
Former Material | KaPton | |
Winding Depth | 14.4mm | |
surround material | Polycotton | |
surround Design | M-roll | |
Magnet | Φ156 | Ferrite Ring |
Thiele & Small Parameters | ||
Resonance Frequency | Fs | 55Hz |
DC Resistance | Re | 5.5Ω |
Mechanical Factor | Qms | 14.1 |
Electrical Factor | Qes | 0.5 |
Total Factor | Qts | 0.48 |
BL Factor | BL | 13.2T.m |
Effective Moving Mass | Mms | 46.43g |
Compliance | Cms | 183uM/N |
Equivalent Cas Air Load | Vas | 31.1L |
Effettive Piston Area | Sd | 346.36cm² |
η(Eta Zero) | η0 | 1.00% |
Mountiong & Shipping Information | ||
Overall Diameter | 262mm | |
Bolt circle diameter | 248mm | |
Baffle Cutout Diameter | 230mm | |
Depth | 113mm | |
Net Weight | 3.95KG |
This is the size chart of the MR10H06D, which can better help you design and install the speaker:

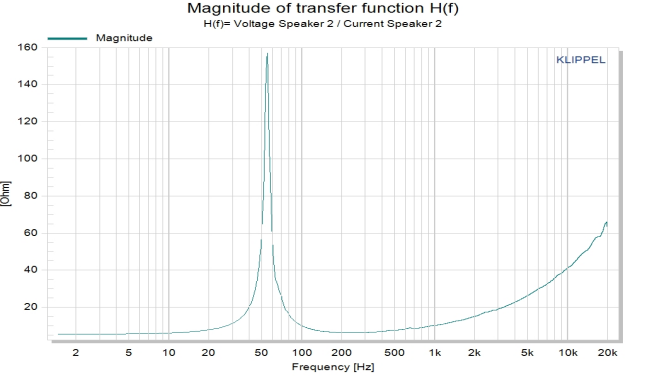

MR10H06D 10-inch woofer speaker curve graph.
