Description：
5 inch audio speaker Nominal Impedance 8Ω, 30mm voice coil rubber edge woofer speaker, AES Power Handing 30W, Frequency Range 60-13kHZ, Sensitivity 1W/1M 84dB.
Form of Information
Form information：
MR05F02C-A This is a product that is very worth looking forward to, with small diameter, light weight, high sensitivity, very smooth frequency response curve and very little distortion.
The tone is very sweet, the vocals are full and soft, and the high frequency is delicate. His design is very unique, and every detail is carefully polished and designed by engineers. From the product's shape, structure, to the acoustic principle design, the best design results have been obtained after numerous experimental tests.
General Specifications | ||
Nominal Diameter | 146mm/5.7 inch | |
Nominal Impedance | 8Ω | |
AES Power Handing | 30W (AES) | |
Maximum Power | 60W | |
Sensitivity 1W/1M | 84dB | |
Frequency Range | 60-13kHz | |
Voice Coil Diameter | 30.5mm/1.2 inch | |
Windinig Material | EISV | |
Former Material | Kapton | |
Winding Depth | 11.7mm | |
surround material | Rubber | |
surround Design | Sine Wave | |
Magnet | Φ100 | Ferrite Ring |
Thiele & Small Parameters | ||
Resonance Frequency | Fs | 60Hz |
DC Resistance | Re | 6.4Ω |
Mechanical Factor | Qms | 5.58 |
Electrical Factor | Qes | 0.47 |
Total Factor | Qts | 0.43 |
BL Factor | BL | 8.16T.m |
Effective Moving Mass | Mms | 12.85g |
Compliance | Cms | 0.556 MM/N |
Equivalent Cas Air Load | Vas | 5.9L |
Effettive Piston Area | Sd | 86.59cm² |
η(Eta Zero) | η0 | 0.3% |
Mountiong & Shipping Information | ||
Overall Diameter | 146mm | |
Bolt circle diameter | 136mm | |
Baffle Cutout Diameter | 115mm | |
Depth | 77mm | |
Net Weight | 1.34kg | |
Shipping Weight | 1.74kg | |

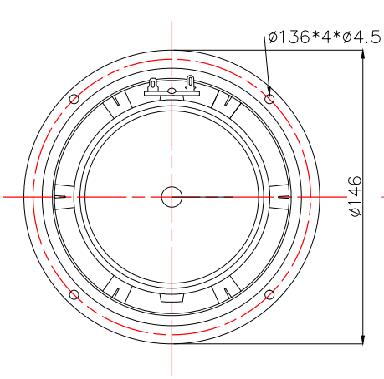

This is the size chart of the MR05F02C-A, which can better help you design and install the speaker:
MR05F02C-A 5 inch audio speaker curve graph.
Company Introduction
Founded in 2005, Merry Audio is a professional manufacturer focusing on R&D, manufacturing and sales of high-power speakers for entertainment KTV, bars, conferences and outdoor perfor-mances. We are committed to providing our customers with high-quality speaker units and supporting solutions.
Now it has world-class production technology and equipment such as KLIPPEI, LMS, CLIO, and laser Test elastic wave displacement and drum paper FS instrument, high-power life tester, salt spray testing machine and online full inspection curve and parameter QC version KLEPPEL and other equipment.
