5 inch aluminum frame 90mm magnet 30 voice coil glass fiber basin speaker, AES Power Handing 50W, Frequency Range 63-13kHz, Sensitivity 1W/1M 84dB, Windinig Material Copper, Winding Depth 11.7mm.
Form of Information
MR05H21A-A,The mid-frequency is fuller, clearer and brighter, the high-frequency is more delicate, the dialogue of the language is more clear, and the timbre effect of the HI-FI level can be achieved.
From the product's shape, structure, to the acoustic principle design, the best design results have been obtained after numerous experimental tests.
| General Specifications | ||
| Nominal Diameter | 146mm/5.7 inch | |
| Nominal Impedance | 8Ω | |
| AES Power Handing | 50W (AES) | |
| Maximum Power | 100W | |
| Sensitivity 1W/1M | 84dB | |
| Frequency Range | 63-13kHz | |
| Voice Coil Diameter | 30.5mm/1.2 inch | |
| Windinig Material | Copper | |
| Former Material | Kapton | |
| Winding Depth | 11.7mm | |
| surround material | Rubber | |
| surround Design | Rubber edge | |
| Magnet | Φ90 | Ferrite Ring |
| Thiele & Small Parameters | ||
| Resonance Frequency | Fs | 63Hz |
| DC Resistance | Re | 6.6Ω |
| Mechanical Factor | Qms | 4.58 |
| Electrical Factor | Qes | 0.75 |
| Total Factor | Qts | 0.64 |
| BL Factor | BL | 6.5T.m |
| Effective Moving Mass | Mms | 12g |
| Compliance | Cms | 530μ M/N |
| Equivalent Cas Air Load | Vas | 5.6L |
| Effettive Piston Area | Sd | 87cm² |
| η(Eta Zero) | η0 | 0.2% |
| Mountiong & Shipping Information | ||
| Overall Diameter | 146mm | |
| Bolt circle diameter | 136mm | |
| Baffle Cutout Diameter | 116mm | |
| Depth | 73mm | |
| Net Weight | 1.04kg | |
| Shipping Weight | 1.06kg | |
This is the size chart of the MR05H21A-A, which can better help you design and install the speaker:

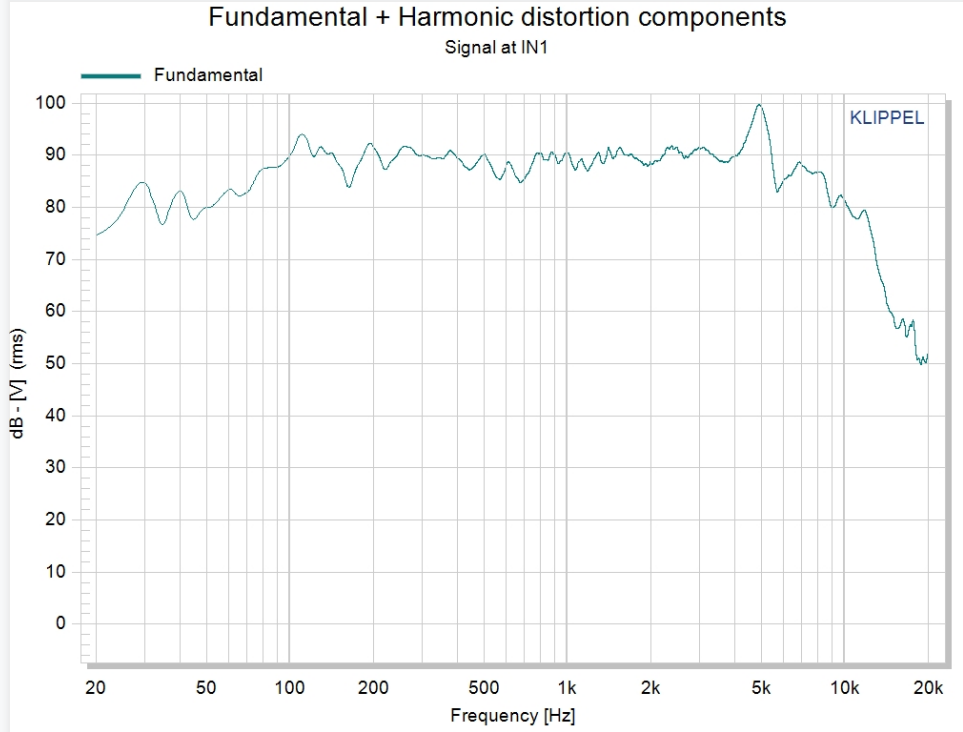

MR05H21A-A 5-inch woofer speaker curve graph.
